What is the cooling system of a smaller blister packing machine?

In the realm of pharmaceutical and consumer goods packaging, smaller blister packing machines play a crucial role. These machines are designed to efficiently pack products such as tablets, capsules, and small consumer items into blister packs. One of the key components that ensure the smooth operation and longevity of these machines is the cooling system. In this blog, as a supplier of smaller blister packing machines, I will delve into what the cooling system of a smaller blister packing machine is and why it is so important.

The Basics of a Smaller Blister Packing Machine

Before we explore the cooling system, let's briefly understand the working principle of a smaller blister packing machine. These machines typically consist of several main parts: a forming station, a filling station, a sealing station, and a cutting station. At the forming station, a plastic film is heated and formed into cavities using a mold. The products are then filled into these cavities at the filling station. Next, a lidding foil is applied and sealed onto the formed blister at the sealing station. Finally, the individual blister packs are cut at the cutting station.

What is the Cooling System?

The cooling system of a smaller blister packing machine is a mechanism that helps to control the temperature of various components within the machine during its operation. It is mainly responsible for dissipating the heat generated by different processes, such as the heating of the plastic film during the forming process and the friction generated by moving parts.

There are two main types of cooling systems commonly used in smaller blister packing machines: air - cooling systems and water - cooling systems.

Air - Cooling Systems

Air - cooling systems are relatively simple and cost - effective. They work by using fans to blow air over the heated components. The air absorbs the heat and carries it away, thus cooling the components. In a smaller blister packing machine, air - cooling systems are often used to cool the electrical components, such as motors and control panels.

The advantage of air - cooling systems is their simplicity and low maintenance requirements. They do not require a complex piping system or a large water supply. However, their cooling capacity is limited compared to water - cooling systems. In some cases, if the machine operates at a high speed or for a long time, air - cooling may not be sufficient to keep the components at an optimal temperature.

Water - Cooling Systems

Water - cooling systems are more efficient in heat dissipation. They use water as a coolant to absorb the heat from the components. The heated water is then circulated through a heat exchanger, where it releases the heat to the surrounding environment. In a smaller blister packing machine, water - cooling systems are commonly used to cool the sealing bars.

The sealing process in a blister packing machine generates a significant amount of heat. If the sealing bars are not cooled properly, the plastic film and the lidding foil may be over - heated, which can lead to poor sealing quality, such as uneven sealing, leakage, or damage to the packaging materials. Water - cooling systems can effectively maintain the temperature of the sealing bars within a suitable range, ensuring high - quality sealing.

Why is the Cooling System Important?

The cooling system is of utmost importance for the proper functioning and longevity of a smaller blister packing machine. Here are some reasons:

Ensuring Product Quality

As mentioned earlier, proper cooling of the sealing bars is essential for achieving high - quality seals. If the temperature is too high, the packaging materials may melt or deform, resulting in defective products. On the other hand, if the temperature is too low, the sealing may not be strong enough, leading to leakage. A well - functioning cooling system helps to maintain the optimal temperature for sealing, ensuring that each blister pack meets the quality standards.

Protecting Machine Components

Excessive heat can cause damage to the machine components. Electrical components, such as motors and control boards, are sensitive to high temperatures. Prolonged exposure to heat can reduce their lifespan and even cause malfunctions. By dissipating the heat, the cooling system protects these components from over - heating, thus extending the overall lifespan of the machine.

Improving Production Efficiency

When the machine components are kept at an optimal temperature, the machine can operate more smoothly and efficiently. Over - heating can cause the machine to slow down or even stop due to thermal protection mechanisms. A reliable cooling system ensures that the machine can run continuously at its designed speed, improving the production efficiency.

Our Company's Approach to Cooling Systems

As a supplier of smaller blister packing machines, we understand the importance of a reliable cooling system. We offer machines with both air - cooling and water - cooling options, depending on the specific requirements of our customers.

For machines that operate at a relatively low speed or in a less demanding environment, our air - cooling systems are sufficient to meet the cooling needs. They are designed with high - efficiency fans and well - designed airflow paths to ensure effective heat dissipation.

For machines that require high - speed operation or have more stringent temperature control requirements, our water - cooling systems are the ideal choice. We use high - quality water pumps and heat exchangers to ensure stable and efficient cooling. Our water - cooling systems are also equipped with temperature sensors and control valves to precisely control the temperature of the coolant.

Related Products

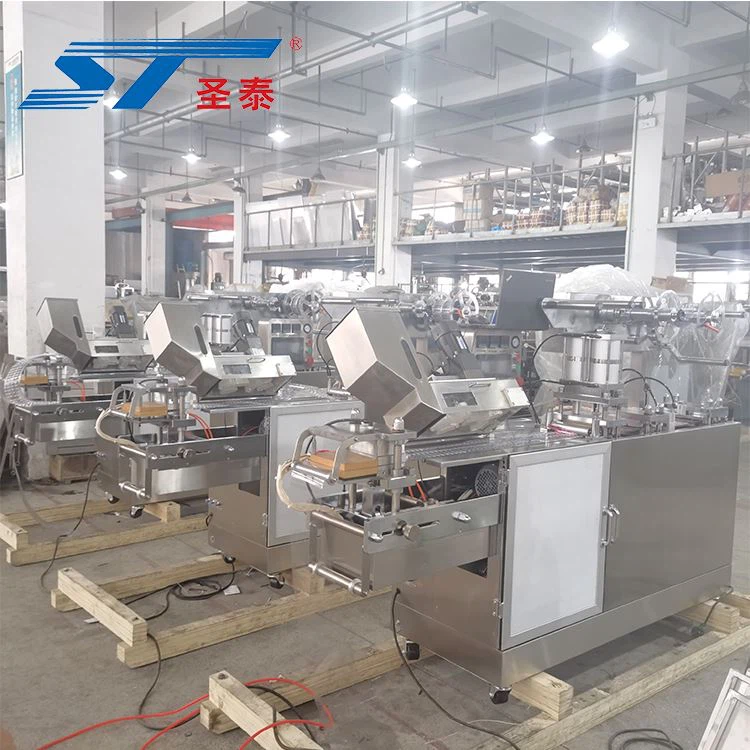

If you are interested in other types of blister packing machines, we also offer a wide range of products, including Automatic Blister Packaging Machine, Blister Cartoner Production Line, and Blister Packing Machine for Vial. These machines are designed with advanced technology and high - quality components to meet the diverse needs of the pharmaceutical and consumer goods industries.

Conclusion

The cooling system is an essential part of a smaller blister packing machine. It plays a vital role in ensuring product quality, protecting machine components, and improving production efficiency. Whether you choose an air - cooling system or a water - cooling system depends on your specific requirements. As a professional supplier of smaller blister packing machines, we are committed to providing high - quality machines with reliable cooling systems.

If you are in the market for a smaller blister packing machine or have any questions about our products, please feel free to contact us for a detailed discussion. We look forward to working with you to meet your packaging needs.
